Special Features

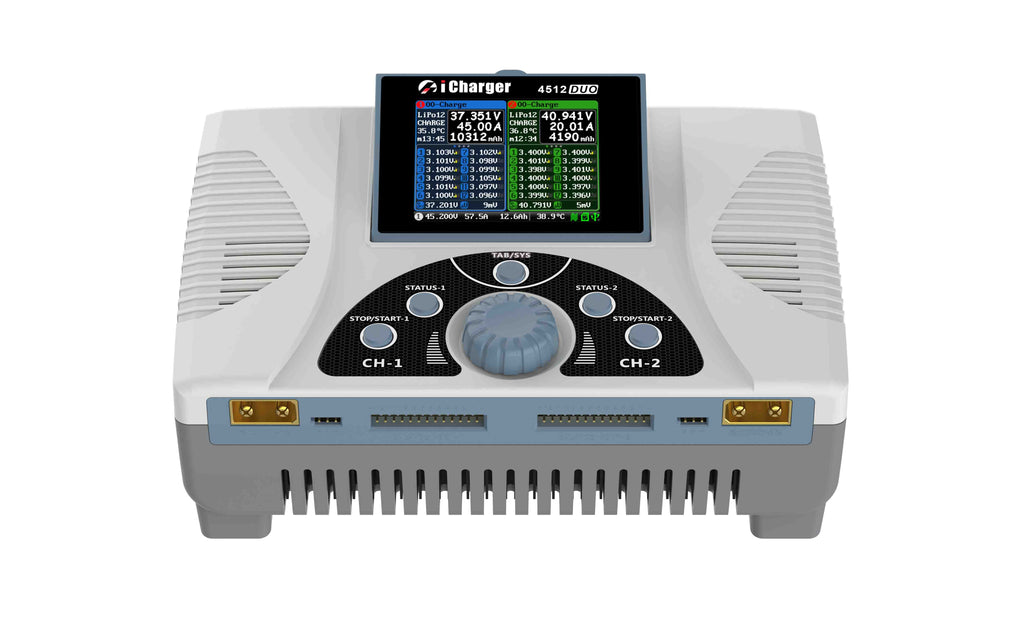

- The 4512DUO uses advanced Synchronous buck-boost DC/DC converter technology, high power, a high current and high-performance power conversion circuit. The maximum charge power capacity is up to 2800W, the maximum charge/discharge current of a channel is up to 45A, and two channels in Synchronous Mode are up to 80A.
- Each channel supports 12s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-32s NiMH/NiCd batteries and 1-20s Pb batteries.
- With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)
- With type-c PD charging port, convenient for the user to charge mobile phones and PCs.
- Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
- Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
- This charger can save 64 parameters sets and support the data import/export to SD card.
- A 2.8" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
- Multi-discharge features: self-discharge, regenerative to input or discharge to another channel, and lithium battery extra expanding discharge.
- Supports measurement for internal resistance of battery offline and online. Measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
- 4512DUO has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
- Supports upgrading the hardware program by USB port or SD card. 4512DUO also supports the “Junsi Console” software and can display, plot and analyze the charge and discharge data by it.
Specifications
- Input voltage range: 11—53VDC
- Maximum Output voltage: 55VDC
- Maximum input current limit: 80A(Channel 60A)
- Maximum charge/discharge current: 80A(Channel 45Ax2)
- Maximum charge power capacity: 2800W(Channel 2000Wx2)
- Maximum discharge power capacity: 200W(Channel 130Wx2)
- Maximum regenerative discharge power capacity: 2800W(Channel 2000Wx2)
- Maximum extra discharge power capacity: 2800W (Channel 2000W @45V/45A)
- Maximum current drain for balancing: 4A(Channel 2Ax2)
- Type-C PD port: 5V/3A, 9V/2A, 12V/1.5A
- Support Battery type: LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb
- Net weight: 1530g
- Dimension: 171×118×57 ±0.5mm
Manual: Download
|
