SAB Goblin Fireball 280 Competition - Havok Edition.
Step up to the insane Havok Edition of the Goblin Fireball 280 Competition, featuring the awesome Antarctic Edition "Havok" livery that will stand out on the flight line and in the skies above.
Featuring a matte black main & tail rotor system, the Fireball 280 Competition Havok Edition has been designed for brutal 3D heli performance, with a high power, light weight setup to push the boundaries of RC heli flight. Incorporating carbon fiber components with an ultra aerodynamic design, the Havok 280 is lean and mean, with incredible precision and control to be unleashed in the skies above.
Designed with a massively simplified, low parts count design, SAB takes the Fireball 280 to unworldly levels when it comes to the parts required to complete this machine. Featuring a centralized brushless outrunner motor that drives the belt directly, setup of this aircraft is brilliantly simple, and crash parts are few to be seen.
Value packed with included competition brushless motor, high output 60A ESC, and SAB cyclic & rudder servos, the Havok 280 has been designed to be pushed hard, low and fast. Featuring a carbon fiber reinforced boom and fiberglass canopy, the Havok 280 is a belt driven beast with an ultra low parts count design that is ready for max 3D flight. Further this with an improved main & tail rotor system for increased control and precision, SAB takes the Fireball 280 kit to the next level, offering insane capability with this ultra compact machine.
Step up to the Competition Edition paired with the awesome Antarctic Edition "Havok" livery for the best SAB Goblin Fireball 280 and get ready for maximum 3D performance!
Features:
Insane "Havok Edition" SAB Antarctic Color Scheme.
Stealthy Matte Black Main & Tail Rotor System.
High Precision Main & Tail Rotor System.
Ultra Low Parts Count Design.
Feather Light Fiberglass Canopy.
High Strength Carbon Reinforced Tail Boom.
Intense 3D Capability.
Brutal Belt Drive Durability.
Specifications:
Main Rotor Blades: 280mm
Tail Rotor Blades: 50mm
Main Rotor Diameter: 626mm
Tail Rotor Diameter: 139mm
Main Shaft Diameter: 5mm
Tail Shaft Diameter: 3mm
Weight: 735g (Battery Excluded)
Included:
(1) SAB Goblin Fireball 280 Competition Havok Edition Helicopter Kit
(1) Main & Tail Rotor Blade Set
(1) HE015-S Competition Brushless Motor
(1) 60A Brushless ESC
(3) SAB Cyclic Servos
(1) SAB Rudder Servo
Required for Flight:
(1) Flybarless Controller
(1) Transmitter
(1) Receiver
(1) 6S LiPo Battery (1000mAh / 1250mAh)
Electronic Recommendations:
Flybarless Controller: (1) iKON Mini Flybarless Controller
LiPo Battery: (1) Pulse 1250mAh 50C 6S 22.2V Battery
u00a0
Registered design 003738210-0001/0004
| SPECIFICATIONS |
General Specifications:
NNOTE: If you have problem with the ESC set up, please follows these instruction The customer needs to calibrate their throttle endpoints as well as do an RPM u201cstandardizationu201d procedure.
The steps for this are as follows:
Set the throttle end points in the radio to 100/100
Set the throttle curve to a flat 0-100 linear line
Remove the main rotor and tail rotor blades (for safety)
Move the throttle stick to the full throttle position and plug the battery into the ESC
Wait for 2 confirmation beeps, lower the throttle stick to the minimum/low throttle position
Wait for more confirmation beeps, unplug the battery.
Calibration complete
For RPM standardization; this must be done after calibrating the endpoints previously. Set the throttle curve to a flat 50% output.
With the main and tail blades installed on the model, plug the battery in as normal
Ensure that you are in the throttle curve/flight mode that has the 50% flat line
Click out of throttle hold and put the throttle stick right in the middle of its travel, let the RPM come up to speed
Let the model run at this 50% output without touching the throttle stick, do this for about 10-15 seconds.
Click into throttle hold and unplug the battery
Change the flat throttle curve to anything other than 50% output, values of 60-80% are normal for 3D flight.
Adjust the flat curve for the desired RPM.
Here is a video for the entire calibration:u00a0https://www.
u00a0 u00a0 |
| Color: | Blue, Purple, White |
| Size: | 20, 24 |
| Material: | 100% Polyester |
Loved the build, love SAB, fit and finish was fantastic and all parts both helicopter parts and electronic fit and finish were also fantastic. Went together with no issues. The power this Fireball for exceeds my ability as a helicopter pilot. Love this thing. I just dial it down a bit for my style of flying
I received a notice from Helidirect informing me that there was a goblin Fireball kit available. Bam.. i pulled the trigger on this little one on a sunday. 😎
Flys great switched to castle 60 amp esc to get fix tail wag.
Super fast shipping, as always. Went together great. Took a bit more set up as do the smaller helicopters anyway. This is a great complete kit.
As expected amassing build quality from SAB. Easy build and great instructions. It can do way more than I can do with my skill level. I would have gave it 5 stars but it is a little heavy.
Another good kit from SAB. Good instructions and high quality parts. Recommend to hot-glue the tail section to the frame for reliability, otherwise it seems to be a weak link.
SAB heli division has done a great job in developing there helicopter line. SAB quality
fit & finish is an industry leader
Choose any one of them and you'll be happy you did. the fireball havoc may be small in size but huge in features. It flys flawlessly!
You will soon have a fleet of SAB helis in your hanger ready to tear up the sky and more importantly put on a smile.

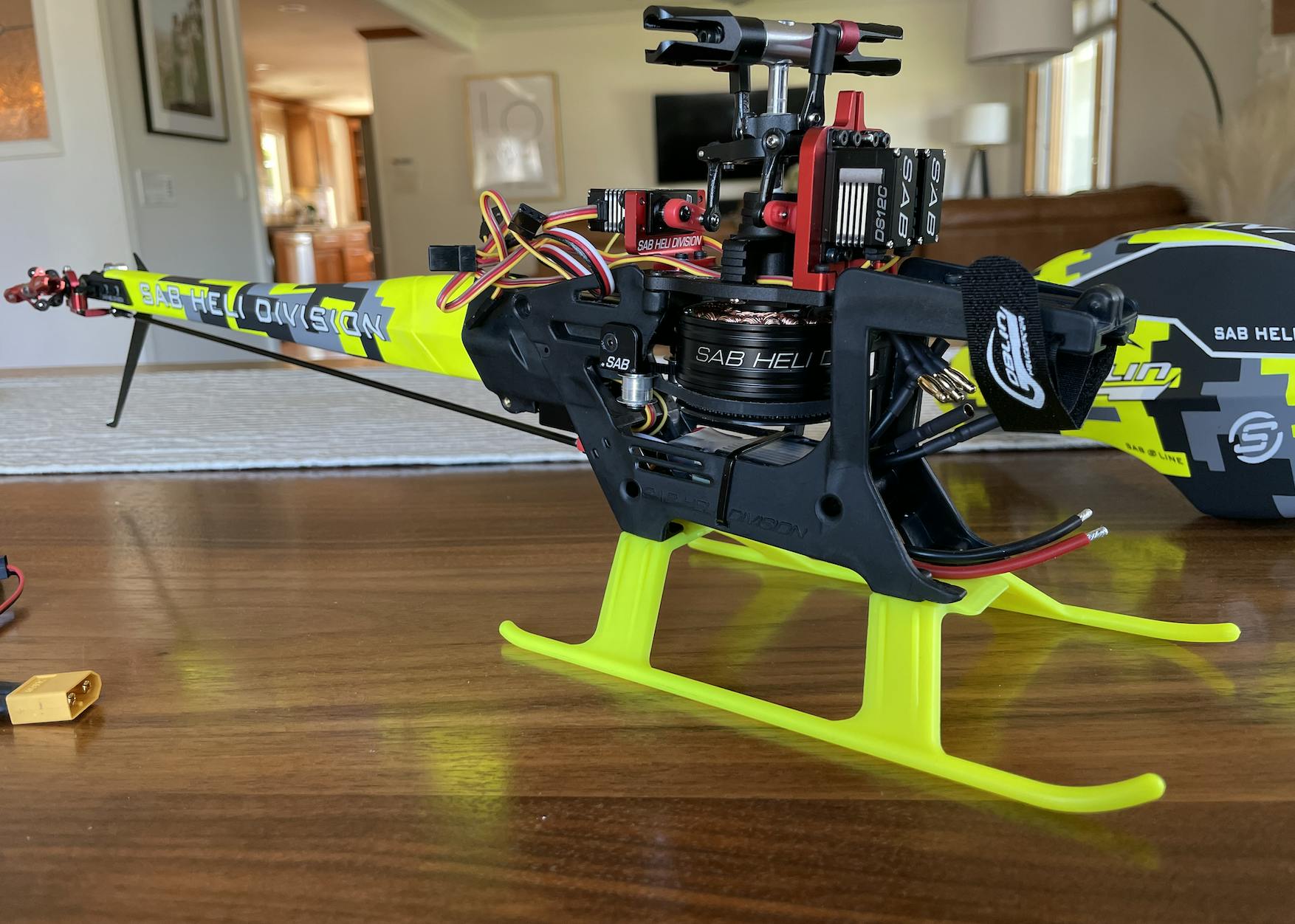

I’ll admit this Heli is a bit beyond my piloting abilities. The competition motor spins this baby up at high head speeds which makes the pitch response a little “touchy”. It’s an amazing model- Solid build quality, precise, great looking, great design, easy to build and repair. Its also a great size for flying around the yard. Just work your way up to it. Like, warm up with a little slower model and if you’re feeling like you need something more aggressive, bring this one out!! Very happy with it and a big fan of Goblin.
Fast and easy build. But need work on tail BOOM design.
Nice build. Tail boom connection to frame is a bad design. First flight my tail BOOM had warn so bad that it became unstable and I had to set it down. There was so much play in tail it was Unfliable. I bought new tail BOOM and hot glued it to frame. Now the heli is solid. Customer service was no help after sending them video of issues.
Awesome heli and fantastic kit. Great price and it shipped fast
Loved the build, love SAB, fit and finish was fantastic and all parts both helicopter parts and electronic fit and finish were also fantastic. Went together with no issues. The power this Fireball for exceeds my ability as a helicopter pilot. Love this thing. I just dial it down a bit for my style of flying
I received a notice from Helidirect informing me that there was a goblin Fireball kit available. Bam.. i pulled the trigger on this little one on a sunday. 😎
Flys great switched to castle 60 amp esc to get fix tail wag.
Super fast shipping, as always. Went together great. Took a bit more set up as do the smaller helicopters anyway. This is a great complete kit.
As expected amassing build quality from SAB. Easy build and great instructions. It can do way more than I can do with my skill level. I would have gave it 5 stars but it is a little heavy.
Another good kit from SAB. Good instructions and high quality parts. Recommend to hot-glue the tail section to the frame for reliability, otherwise it seems to be a weak link.
SAB heli division has done a great job in developing there helicopter line. SAB quality
fit & finish is an industry leader
Choose any one of them and you'll be happy you did. the fireball havoc may be small in size but huge in features. It flys flawlessly!
You will soon have a fleet of SAB helis in your hanger ready to tear up the sky and more importantly put on a smile.
I’ll admit this Heli is a bit beyond my piloting abilities. The competition motor spins this baby up at high head speeds which makes the pitch response a little “touchy”. It’s an amazing model- Solid build quality, precise, great looking, great design, easy to build and repair. Its also a great size for flying around the yard. Just work your way up to it. Like, warm up with a little slower model and if you’re feeling like you need something more aggressive, bring this one out!! Very happy with it and a big fan of Goblin.
Fast and easy build. But need work on tail BOOM design.
Nice build. Tail boom connection to frame is a bad design. First flight my tail BOOM had warn so bad that it became unstable and I had to set it down. There was so much play in tail it was Unfliable. I bought new tail BOOM and hot glued it to frame. Now the heli is solid. Customer service was no help after sending them video of issues.
Awesome heli and fantastic kit. Great price and it shipped fast
