ToolkitRC Q4AC 1-4S 100W AC / 200W DC 4CH Smart Charger - XT60

$84.99
You will earn 84.99 points for buying this product

The ToolkitRC Q4AC is an updated version of the M4Q with a faster processor, upgraded charging power, and a new casing. This is a Quad Channel AC/DC smart charger featuring four independently operated charging outputs. This charger comes with a 32-bit ARM Processor, IPS wide-angle display, XT60 ports, and 10 language options.

Features

  • AC/DC Charging - Power Supply Modes: AC100-240Vmax 100W; DC 10-18V max 200W
  • Record 3 Groups of Commonly Used Power
  • Update Firmware by Connecting to PC
  • Max 5A @MAX50W Charging Current
  • Record 5 Commonly Used Batteries
  • 3.5" IPS 480x320p LCD Screen
  • USB2.0 MicroUSB Upgrade
  • 240mA Balancing Current
  • IPS Wide-Angle Display
  • 32-bit ARM Processor
  • 10 Language Options
  • 4 Output Channels





Specifications

  • Internal resistance: 1-100mR @1-4S
  • Type of Battery:
    • LiPo LiHV LiFe Lion@1-4S
    • NiMh @1-10S Pb @1-8S
  • Voltage Range: 0.2V-5.0V @1-4S
  • Input Voltage:
    • AC100-240V@MAX1.5A
    • DC10-18V@MAX20A
  • Balance Current: 240mA @2-4S
  • LCD: IPS 3.5inch 480x320pixel
  • Dimensions: 150x112x36.5mm
  • MicroUSB: Upgrade@USB2.0
  • Balance Accuracy: < 0.005V
  • Charge Power:
    • 0.1-5A@50W*4 DC
    • 0.1-5A@50W*2 AC
  • Weight: 460g (1.02lb)

Includes

  • 1x ToolkitRC Q4AC Quad Channel Charger
  • 1x Screen Protector
  • 1x USB-C Cable
  • 1x AC Cable



ToolkitRC Q4AC Firmware
ToolkitRC Q4AC Manual
Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
0%
(0)
20%
(1)
0%
(0)
W
William B. (Sullivan, MO, US)
charger

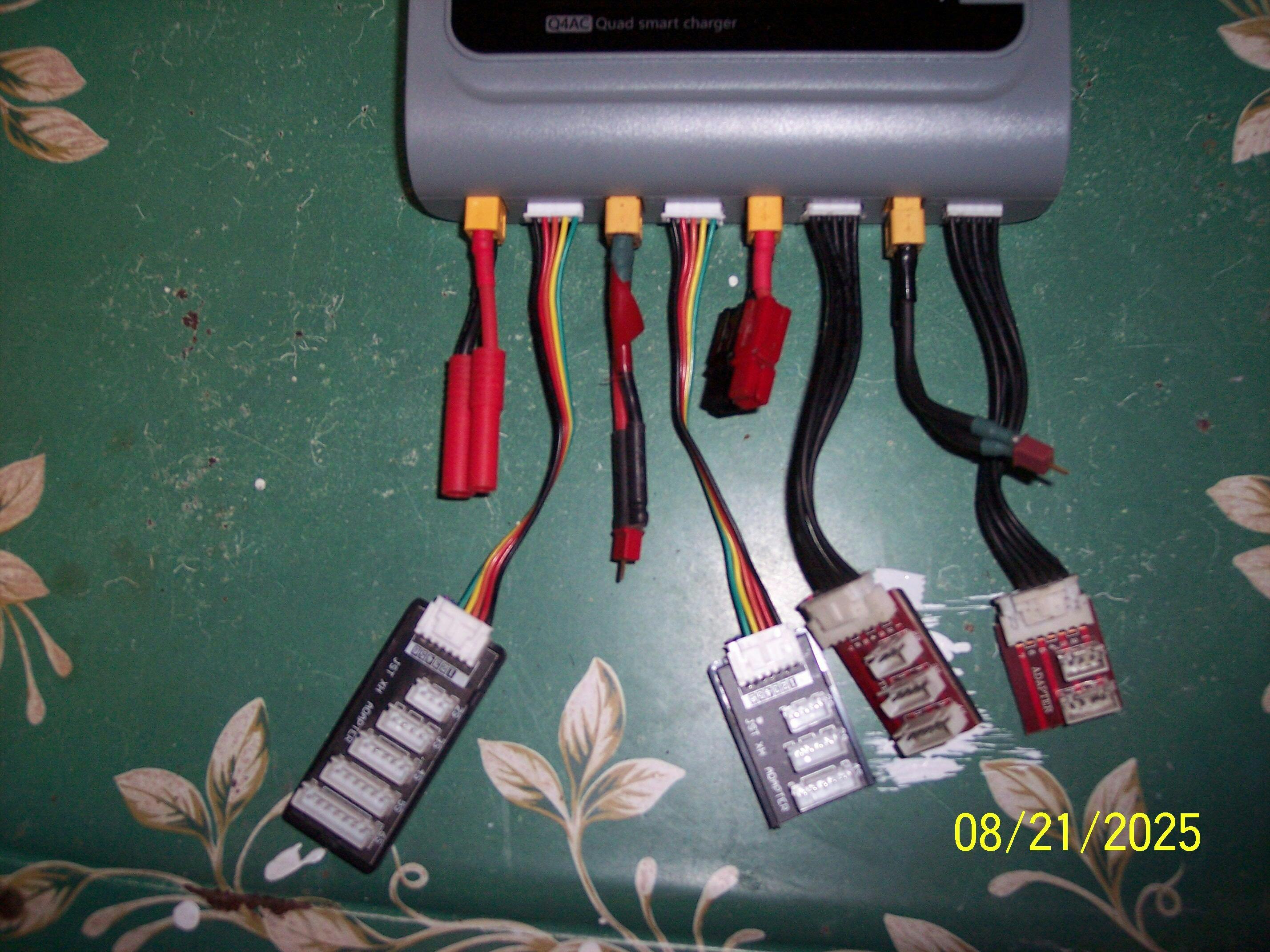

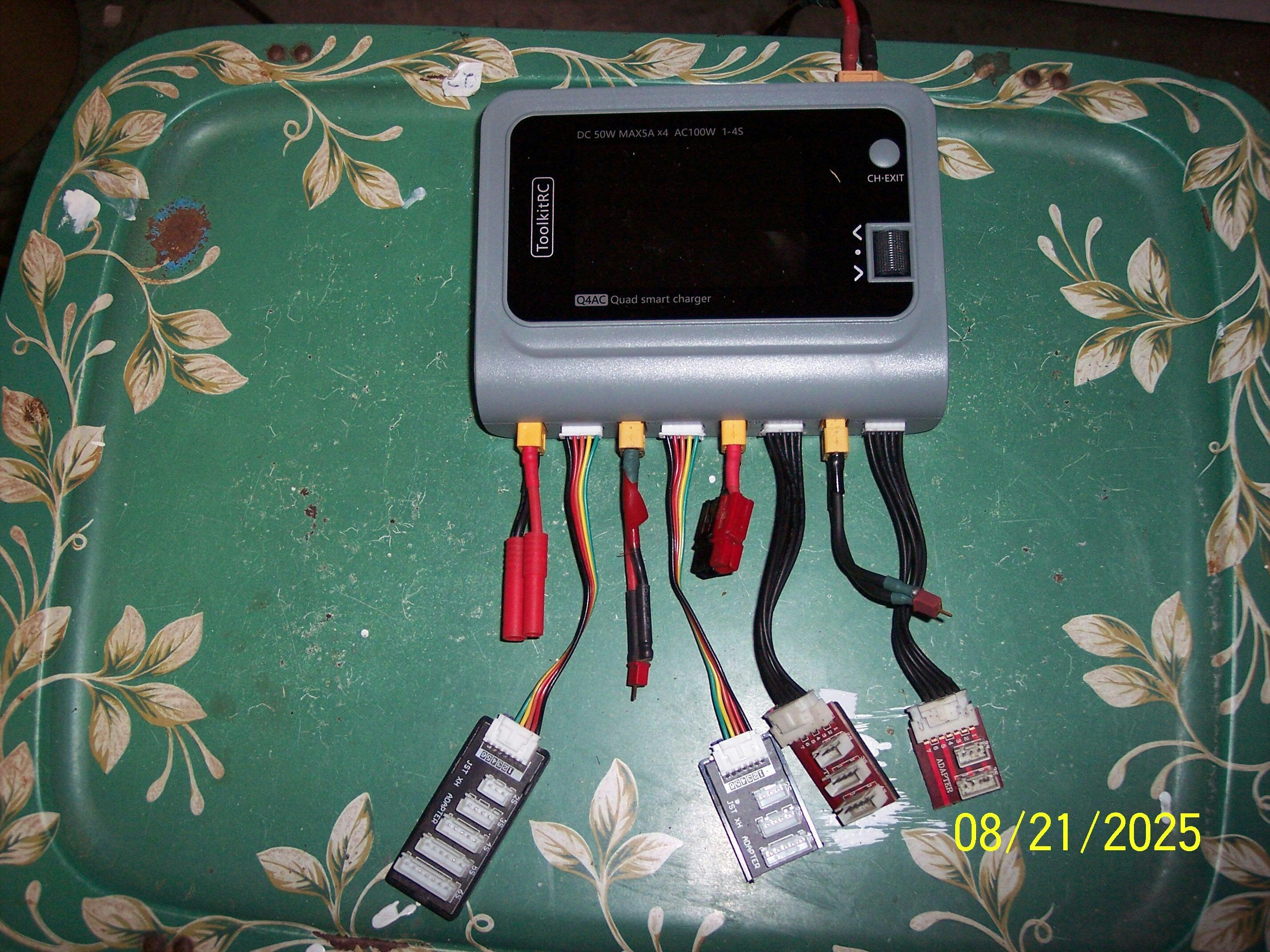

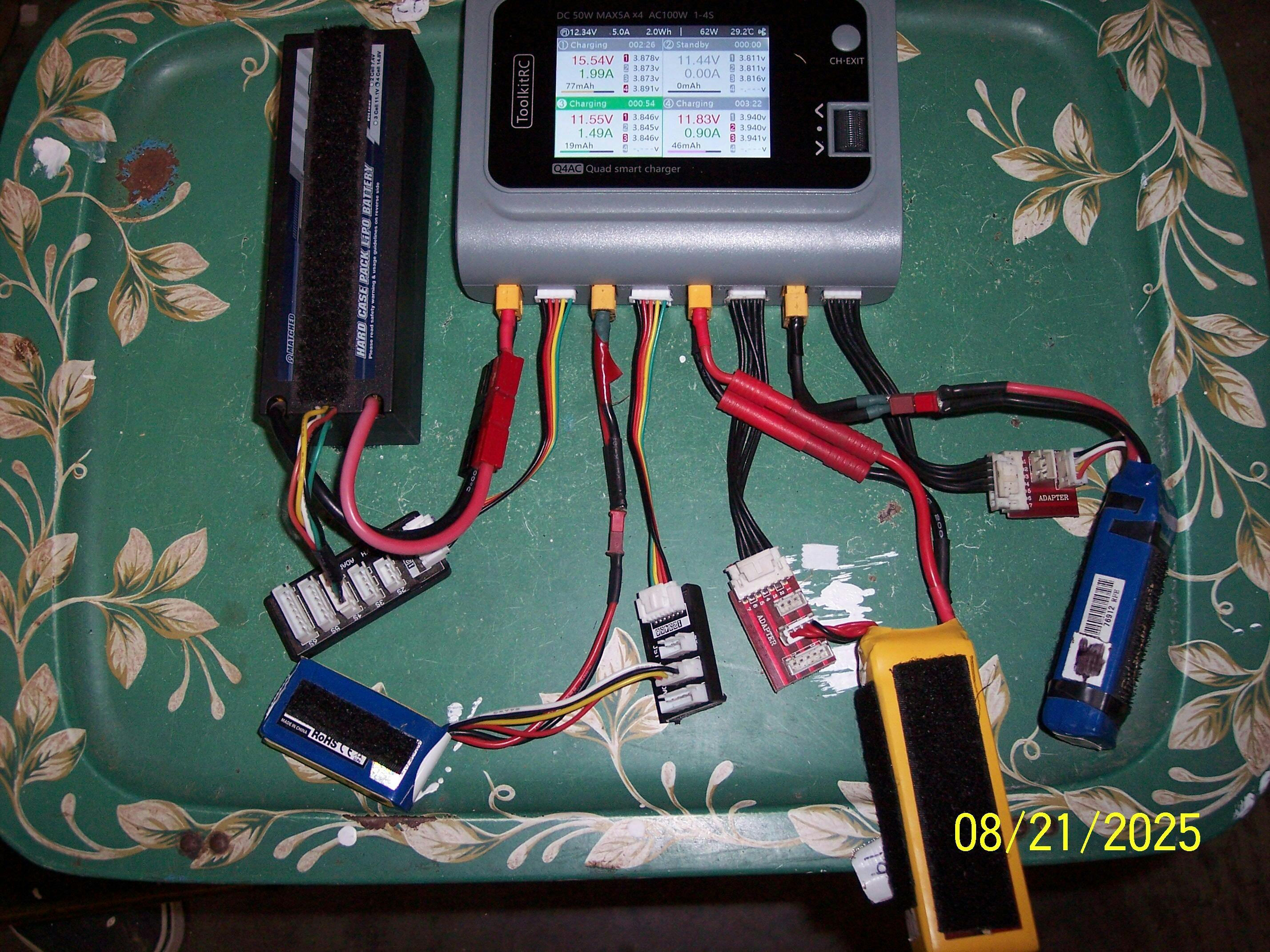

The strong point of this battery charger, is also it's a weak point. The battery charger is very small in size and light, easy to carry to the field to charge batteries at the Flying Field. However, the fact that it's so small makes it hard to plug batteries and balance leads into the front of the battery charger. So I modified some 6s balance blocks, so they would fit into the 4S plug in on the charger. This gives me plenty of extended room to plug in the balance leads. Without this every time I tried to plug in my balance leads the heavy wires on my batteries push the battery away from the charger and unplugged the balance leads. I also made charger leads to accommodate the three different type of plugins I have, this gave me a little extra room to wiggle and plugging in my batteries which really helped. I particularly like all the information on the display screen for each individual battery. William

W
Wm. (Sullivan, MO, US)
I like the charger so much I ordered another one just like it

My unit charge good and I really like the digital readout. However when I tried to discharge some batteries it ran them down below two votes. I thought I must have set it wrong, so I tried it again. I got busy and forgot about watching it I went back about 4 hours later it was down to 1.75 votes per cell. It was discharging very very slow. This was happening on station number 3. I tried to plug it into my computer to upgrade it and it kept giving me an error message of low voltage. Couldn't figure out how to make it work. So I returned it to Walmart where I ordered it from. However I like the charger so much I ordered another one just like it from the same people who supplied this one to me. It got lost in UPS shipping but supposed to come tomorrow. The unit is so small you will need to order some charging boards so that you have enough room to plug in the balance wires. Some of my batteries have short balance wires and the heavy charging wires push the batteries away from the charger and unplugged the balance wires every time I tried to use it

L
Larry

So far only charged batteries once

A
Andrey R. (Detroit, MI, US)
Great little charger

Very nice compact charger. Works as expected, very easy to use. The scroll wheel on mine doesn't scroll reliably to the left but that's not a big deal. 4 charging ports are amazing if you have got many batteries. Measures internal resistance too which was a surprise. Thanks HD and ToolkitRC!

R
Rob

Works perfectly.

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
0%
(0)
20%
(1)
0%
(0)
W
William B. (Sullivan, MO, US)
charger

The strong point of this battery charger, is also it's a weak point. The battery charger is very small in size and light, easy to carry to the field to charge batteries at the Flying Field. However, the fact that it's so small makes it hard to plug batteries and balance leads into the front of the battery charger. So I modified some 6s balance blocks, so they would fit into the 4S plug in on the charger. This gives me plenty of extended room to plug in the balance leads. Without this every time I tried to plug in my balance leads the heavy wires on my batteries push the battery away from the charger and unplugged the balance leads. I also made charger leads to accommodate the three different type of plugins I have, this gave me a little extra room to wiggle and plugging in my batteries which really helped. I particularly like all the information on the display screen for each individual battery. William

W
Wm. (Sullivan, MO, US)
I like the charger so much I ordered another one just like it

My unit charge good and I really like the digital readout. However when I tried to discharge some batteries it ran them down below two votes. I thought I must have set it wrong, so I tried it again. I got busy and forgot about watching it I went back about 4 hours later it was down to 1.75 votes per cell. It was discharging very very slow. This was happening on station number 3. I tried to plug it into my computer to upgrade it and it kept giving me an error message of low voltage. Couldn't figure out how to make it work. So I returned it to Walmart where I ordered it from. However I like the charger so much I ordered another one just like it from the same people who supplied this one to me. It got lost in UPS shipping but supposed to come tomorrow. The unit is so small you will need to order some charging boards so that you have enough room to plug in the balance wires. Some of my batteries have short balance wires and the heavy charging wires push the batteries away from the charger and unplugged the balance wires every time I tried to use it

L
Larry

So far only charged batteries once

A
Andrey R. (Detroit, MI, US)
Great little charger

Very nice compact charger. Works as expected, very easy to use. The scroll wheel on mine doesn't scroll reliably to the left but that's not a big deal. 4 charging ports are amazing if you have got many batteries. Measures internal resistance too which was a surprise. Thanks HD and ToolkitRC!

R
Rob

Works perfectly.
