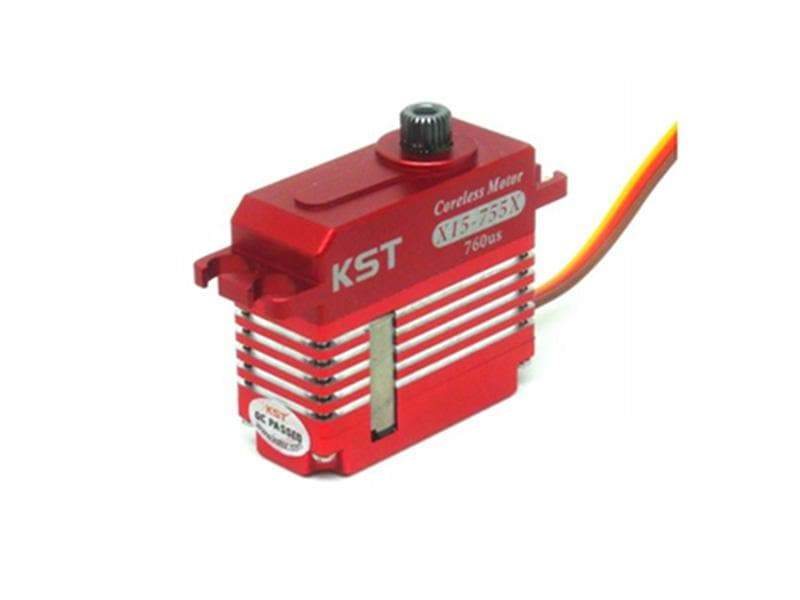

KST X15-755X Mini Tail Servo

Operating Data:

Operation Voltage(rated): DC7.4V
Operation Voltage Range: DC6.0V-8.4V
Stalling Torque: 7.2Kg.cm@6.0V
                          9.0Kg.cm@7.4V
                         10.2Kg.cm@8.4V
Speed: 0.06sec/60°@6.0V
             0.05sec/60°@7.4V
             0.04sec/60°@8.4V
Travel Angle: ±50°when 1000-2000us
Operating Temperature Range: -20℃……+65℃

Materials and protective features:

Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Hardened Steel
Position Sensor: Potentionmeter
Position Feedback: Optional
Shielded Connecting Cable: 26AWG

Specifications:
Operating Voltage: 6-8.4V
Size: 35.5x15x32.5mm
Pulse Width: 760uS
Torque: 7.2kg.cm @ 6.0V; 10.2kg.cm @ 8.4V
Speed: 0.06sec/60° @ 6.0V; 0.04sec/60° @ 8.4V
Weight: 40g
Working Frequency: 760us/560Hz
Motor: Coreless
Ball Bearing: 2BB
