INCLUDES

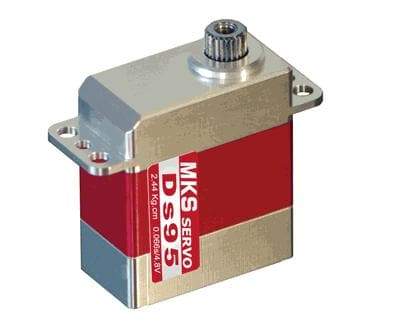

- MKS DS95 Servo ID#S0013010
- Servo Horn Package, x1
Specifications:
• Dead band: 0.001ms (Default)
• Control System: +Pulse Width Control
• Working frequence: 1520μs / 333hz
• (RX) Required Pulse: 3.0 ~5.0 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8 ~6.0 V DC Volts
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (4.8V): 0.066 sec/60° degrees at no load
• Operating Speed (6.0V): 0.053 sec/60° degrees at no load
• Stall Torque (4.8V): 2.44 kg-cm (33.9oz/in)
• Stall Torque (6.0V): 3.05 kg-cm (42.3oz/in)
• 360° Modifiable: YES
• Motor Type: 12mm Coreless Motor
• Potentiometer Drive: Direct Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: Chrome Gear
• Case: All Alumimnum Outer Case
• Programmable: No
- Weight: 21.21g (0.75 oz)
- Dimensions: 23X12X27.25 mm (0.9X0.47X1.07 in)
- Connector Wire Length: 20.0cm (7.8 in)
Bringing you the latest all-metal gear servos that provide high speed, high torque and cooling ability never seen before.
Micro Servo | (4.8v)sec/60° | (6.0v)sec/60° | (4.8v) kg/cm | (6.0v)kg/cm |
MKS DS95 | 0.066 | 0.053 | 2.44 | 3.05 |
HS-5065MG | 0.14 | 0.11 | 1.8 | 2.2 |
Color: | Blue, Purple, White |
Size: | 20, 24 |
Material: | 100% Polyester |
they are great, but I can't figure out what servo arm they take.
MKS is my go to servo for my high end builds. Never had a problem.
my fbl 450 would eat 410m servo gears like crazy each crash. I have 3 crashes on these and so far so good.
The best servo for a 450 size heli. Fast, poweful and durable
I have had a tremendous experience with these servos. The MKS DS95 servo has tremendous crash resistance in my experience compared to, say, the Align DS410m which I literally have a small box of (all ruined by 450 crashes in, er, my learning stages). I switched all four of my 450s over to these servos on cyclic, with their brother, the MKS DS95i, on the tail, and have yet to have one break (despite, er, ongoing "learning" experiences). They are fast, very precise, and have no discernible slop. Good value for the money given their longevity compared to cheaper servos. Two thumbs up. TC
Nice servos when they work but crash ability is very poor. 8 flights in, First crashed the main gear in the servo sheared it self in half. Was not even a bad crash the align blades never broke, not even a scratch on the blades. My Hitec, JR 285MG, Coronas(really nice for the money), and older MKS servos centered just as well just not quite as fast, after many crashes with my other servos I NEVER BROKE ONE SERVO UNTIL NOW. Very disappointed with the DS95's.
Very good and fast servos.
I have been flying hard on these servos for 6 months now without a single problem. They are fast, accurate, and dependable. I would highly recommend these servos to anyone looking for the best and can afford them. You get what you pay for!
These are the best cyclic servos I have ever used seen or heard about. I installed these on my Rave 450 and my cyclic response became lightning fast with finite precision. A+++++
they are great, but I can't figure out what servo arm they take.
MKS is my go to servo for my high end builds. Never had a problem.
my fbl 450 would eat 410m servo gears like crazy each crash. I have 3 crashes on these and so far so good.
The best servo for a 450 size heli. Fast, poweful and durable
I have had a tremendous experience with these servos. The MKS DS95 servo has tremendous crash resistance in my experience compared to, say, the Align DS410m which I literally have a small box of (all ruined by 450 crashes in, er, my learning stages). I switched all four of my 450s over to these servos on cyclic, with their brother, the MKS DS95i, on the tail, and have yet to have one break (despite, er, ongoing "learning" experiences). They are fast, very precise, and have no discernible slop. Good value for the money given their longevity compared to cheaper servos. Two thumbs up. TC
Nice servos when they work but crash ability is very poor. 8 flights in, First crashed the main gear in the servo sheared it self in half. Was not even a bad crash the align blades never broke, not even a scratch on the blades. My Hitec, JR 285MG, Coronas(really nice for the money), and older MKS servos centered just as well just not quite as fast, after many crashes with my other servos I NEVER BROKE ONE SERVO UNTIL NOW. Very disappointed with the DS95's.
Very good and fast servos.
I have been flying hard on these servos for 6 months now without a single problem. They are fast, accurate, and dependable. I would highly recommend these servos to anyone looking for the best and can afford them. You get what you pay for!
These are the best cyclic servos I have ever used seen or heard about. I installed these on my Rave 450 and my cyclic response became lightning fast with finite precision. A+++++
