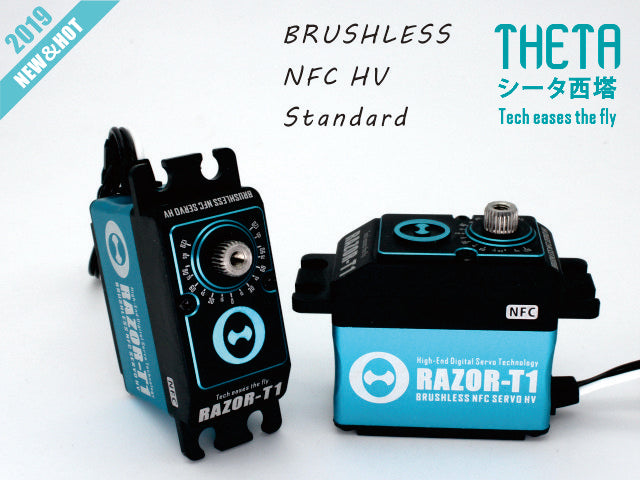

THETA RAZOR-T1 NFC HV Standard Brushless Servo - HeliDirect

THETA RAZOR-T1 NFC HV Standard Brushless Tail Servo

$129.99
You will earn 129.99 points for buying this product
style="display:none" ETA:

High voltage, standard size brushless servo 600, 700 and even 800 class helicopters tail servo airplanes a great throttle or steering servo on most cars (SANWA SSR compatible)

40*20*38mm  73g

Features:
  • High Voltage
  • High Speed
  • Excellent Centering
  • Compatible with Futaba type horns/arms
  • Fully programmable via NFC enabled Android smart phones
  • Light Weight
Technical Specs:

  • Limit angle: 180±10°(500-2500µsec)
  • Operating travel: 90°(1000-2000µsec)
  • Rotating direction: Adjustable
  • Neutral position: 760us/1520µsec (adjustable, 760us default)
  • Maximum travel: ˜150°(800-2200µsec)
  • Pulse width range: Adjustable
  • Connector wire length: 320 ± 5 mm
  • Connector wire gauge: #22PVC
  • Dead band width: 1-4µsec
  • Size: 40x20x38mm
  • Weight: 73g

Voltage (V) Current (A)

Speed (s/60°)

Torque(kg*cm)

5.0

2.6

0.062

17

6.0

2.6

0.054

18

7.4

2.6

0.047

19

8.4

2.6

0.042

20





5.0

5.0

0.058

20

6.0

5.0

0.051

24

7.4

5.0

0.044

27

8.4

5.0

0.039

30

Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester
