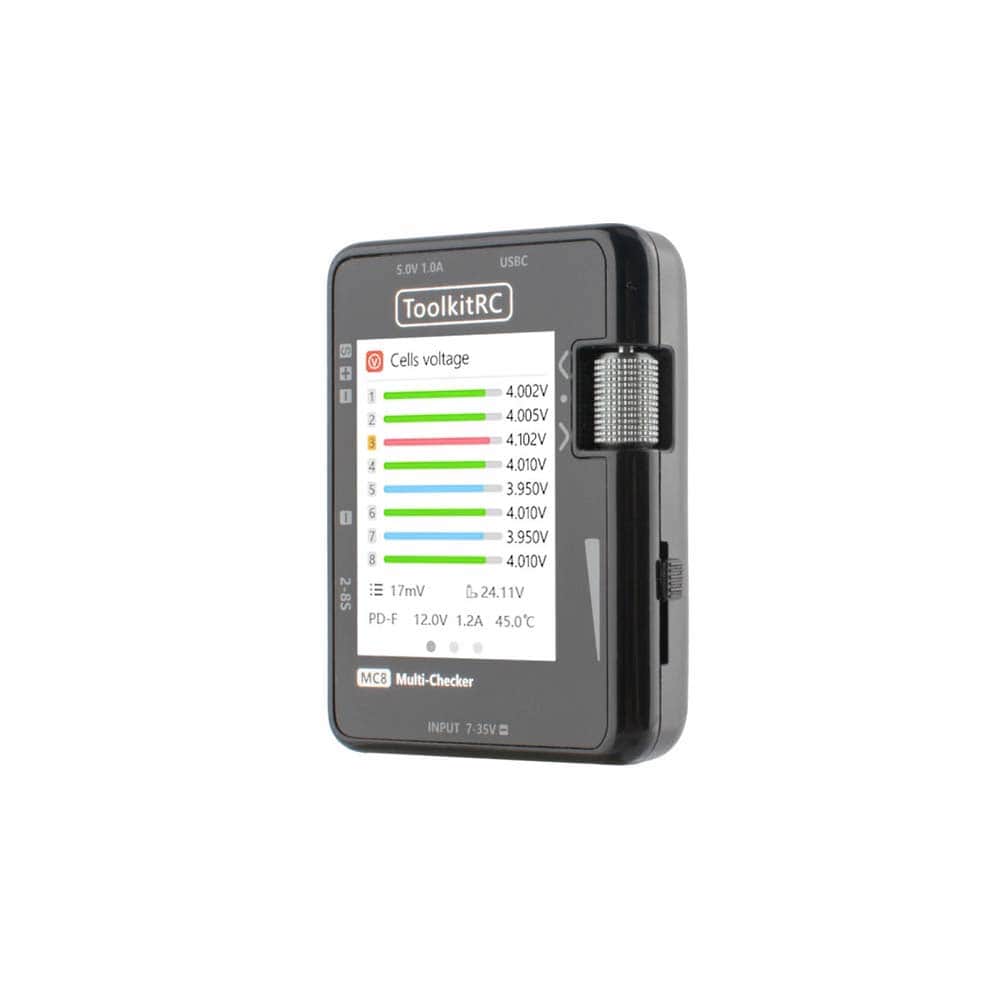

ToolkitRC MC8 Cell Checker & Multi Tool w/ USB-C Fast Charging

$36.99
You will earn 36.99 points for buying this product
style="display:none" ETA:



Specifications

Main input port XT60 7.0V-35.0V
Balance input 0.5V-5.0V Lixx 2-8S
Signal port input <6.0V
Balance current MAX 60mA @2-8S
Balance accuracy <0.005V @ 4.2V
USB-A output 5.0V@1.0A firmware upgrade
USB-C output 5.0V-12.0V @MAX 20W
USB-C protocol PD3.0 QC3.0 AFC SCP FCP

Measurement

PWM 500-2500us @20-400Hz
PPM 880-2200us*8CH @20-50Hz
SBUS 880-2200us *16CH @20-100Hz

Output

PWM 1000-2000us @20-1000Hz
PPM 880-2200us*8CH @50Hz
SBUS 880-2200us *16CH @74Hz
Item Size 68mm*50mm*15mm
Item Weight 50g
Package Size 76mm*60mm*30mm
Package Weight 100g
LCD IPS 2.0 inch 240*240 resolution

Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Miguel D. (East Providence, RI, US)
Battery checker and more.

Although it is small it has big features. It can check up to 8S battery, it can also balance the pack. It takes a while as it does it slowly. Another great feature is servo and ESC operations. Overall it’s a nice device.

R
Robert B. (Billings, MT, US)
toolKit Rc

I need a tester for sbus and pwm so I purchased this unit.
I am very pleased I did. Works for a good battery tester also.
Bob B

R
R.B. (Billings, MT, US)
Test equipment

This work very well I use it for Sbus and batteries.

P
Paul C. (South Jordan, UT, US)
Good Product

Seems to work as described. I haven't used the servo setup feature, but I have used it to balance some batteries and do some testing. It is more accurate than my cheap $12 tester.

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Miguel D. (East Providence, RI, US)
Battery checker and more.

Although it is small it has big features. It can check up to 8S battery, it can also balance the pack. It takes a while as it does it slowly. Another great feature is servo and ESC operations. Overall it’s a nice device.

R
Robert B. (Billings, MT, US)
toolKit Rc

I need a tester for sbus and pwm so I purchased this unit.
I am very pleased I did. Works for a good battery tester also.
Bob B

R
R.B. (Billings, MT, US)
Test equipment

This work very well I use it for Sbus and batteries.

P
Paul C. (South Jordan, UT, US)
Good Product

Seems to work as described. I haven't used the servo setup feature, but I have used it to balance some batteries and do some testing. It is more accurate than my cheap $12 tester.
