Torq BLS Combo - Brushless Fullsize Servo Set - HeliDirect

Torq BLS Combo - Brushless Fullsize Servo Set

$368.60 $388.00
You will earn 388 points for buying this product
style="display:none" ETA:

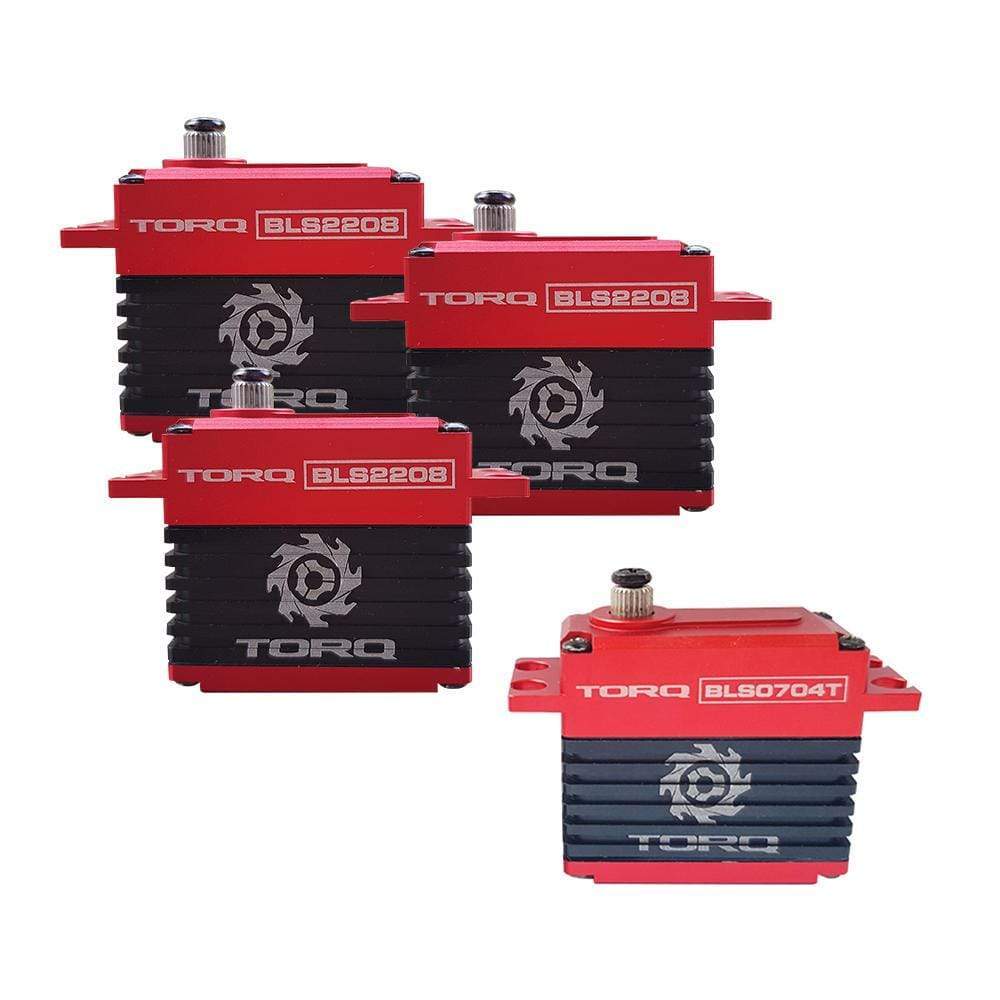

Includes :

  • TORQ BLS2208 x 3
  • TORQ BLS0704T x 1

BLS2208 Spec:

Speed:

  • 0.07 sec / 60° @ 8.4V
  • 0.08 sec / 60° @ 7.4V
  • 0.09 sec / 60° @ 6.0V

Torque:

  • 25Kg.cm / 347.18 oz in. @ 8.4V
  • 22Kg.cm / 305.52 oz in. @ 7.4V
  • 18Kg.cm / 249.97 oz. in. @ 6.0V

Specifications:

  • Motor Type: Brushless
  • Servo Arm Type: Futaba
  • Working Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
  • Weight: 78g
  • Dimensions: 40.5mm x 20mm x 38mm (LxWxH)
  • Voltage Range: 6.0V - 8.4V

BLS0704T Spec:

Speed:

  • 0.035 sec / 60° @ 8.4V
  • 0.040 sec / 60° @ 7.4V
  • 0.045 sec / 60° @ 6.0V


Torque:

  • 8.0Kg.cm / 111.09 oz. in. @ 8.4V
  • 7.0Kg.cm / 97.21 oz. in. @ 7.4V
  • 6.0Kg.cm / 83.32 oz. in. @ 6.0V


Specifications:

  • Motor Type: Brushless
  • Servo Arm Type: Futaba
  • Working Pulse Width / Frequency: 760us / 560Hz
  • Weight: 78g
  • Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
  • Voltage Range: 6.0V - 8.4V

Usage Note:

Servo Grommet is suggested if you use our servo on Nitro Heli.





Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tom B. (Morganville, NJ, US)
Convenient and Economical

I've never purchased servos as complete sets before, but there is a significant cost savings to be had over buying individual servos and you get everything you need in one box. Torq servos have been excellent performers on several of my models - quite happy with them.

A
AceViperX
Another quality product from TORQ

Solid anodised metal casing with quality build.
Works perfectly with TORQ servo programmer to set the default centering and change the between 1520 and 760us for high speed 560hz refresh rate. Pair that with a Ikon2 For a solid Flybarless setup.

M
Matt L. (Birmingham, AL, US)
Really nice servos

Purchased in 2022. Reviewing after 1 year of use. I really like the servos. They are strong and fast! Running them at 8.4V on a Kolibri 140 HV-I with no problems and 760 center pulse on a CGY760R. Very happy with them. They are noisy though. Also have the T-box to set zero and adjust center pulse. Highly recommended!! Like them so much I bought the Black Edition for my next build.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tom B. (Morganville, NJ, US)
Convenient and Economical

I've never purchased servos as complete sets before, but there is a significant cost savings to be had over buying individual servos and you get everything you need in one box. Torq servos have been excellent performers on several of my models - quite happy with them.

A
AceViperX
Another quality product from TORQ

Solid anodised metal casing with quality build.
Works perfectly with TORQ servo programmer to set the default centering and change the between 1520 and 760us for high speed 560hz refresh rate. Pair that with a Ikon2 For a solid Flybarless setup.

M
Matt L. (Birmingham, AL, US)
Really nice servos

Purchased in 2022. Reviewing after 1 year of use. I really like the servos. They are strong and fast! Running them at 8.4V on a Kolibri 140 HV-I with no problems and 760 center pulse on a CGY760R. Very happy with them. They are noisy though. Also have the T-box to set zero and adjust center pulse. Highly recommended!! Like them so much I bought the Black Edition for my next build.
