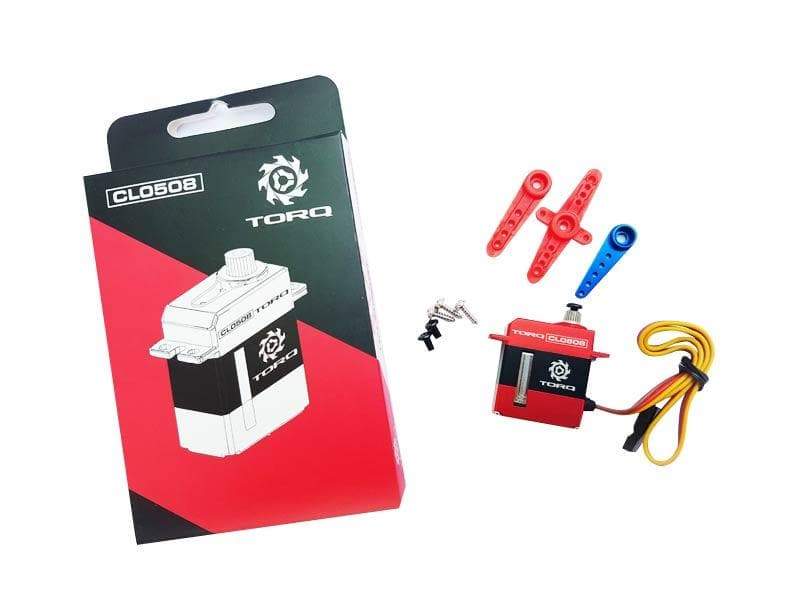

TORQ CL0508 Micro HV Servo

$40.00
You will earn 40 points for buying this product
style="display:none" ETA:

TORQ CL0508 Micro HV Servo - Power, Performance & Pure Domination.

Optimized for second to none power & performance, TORQ brings forth a micro servo that is ready & able to push the boundaries of the micro servo world.

Designed specifically for high torque / high speed demands of helicopter, airplane & jet based aircraft, the TORQ CL0508 Micro HV Servo utilizes coreless motor technology to obtain peak torque output, equating the TORQ CL0508 Micro HV Servo as one of the most powerful micro servos on the market today.

With a crushing torque rating paired with rapid transit speeds, the TORQ CL0508 Micro HV Servo is ready to exceed the boundaries of your next flight, with next level precision and resolution that can be felt at the sticks. Ready & waiting for high voltage applications, the CL0508 operates within a wide voltage range, providing peak torque & speed with 8.4V of power.

Constructed with fully replaceable high strength steel gears, the TORQ CL0508 Micro HV Servo utilizes a thermal dissipating 6061 aluminum case that is further aided in cooling via an exposed motor design. Optimized for extreme aircraft applications that demand incessant torque and power, the CL0508 provides ultra crisp control, with in flight tactile feel that can be seen and felt.

Step up to the TORQ CL0508 Micro HV Servo - pure performance & control for epic levels of servo domination.

Features:

- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design

Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V

Specifications:

Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g
Operating Voltage: 4.8V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)

 HIGH TORQUE POWER OUTPUT

The TORQ CL0508 Micro Servo has been optimized with coreless motor technology, providing epic levels of torque in order to meet the demands of any aircraft extreme. From 3D helicopters, aerobatic airplanes or high speed jets, the TORQ CL0508 Micro Servo is the perfect choice to exceed your aircraft limitations.

ULTRA FAST TRANSIT SPEEDS

Speed is life. Designed for ultra rapid transit speeds, the TORQ CL0508 offers incredible speeds for absolute levels of control, making your next flight truly epic in every possible way. No matter what you fly, the TORQ CL0508 is ready and waiting to provide the ultra fast inputs for crisp response & incredible control.\

HIGH STRENGTH STEEL GEARS

Designed with strength in mind to harness the ultra high levels of torque available, the TORQ CL0508 is optimized with a full steel gear train to provide the best levels of overall strength. Utilizing high strength steel gears helps stand up to crash damage for the best overall functionality when under the greatest levels of stress.

INCREDIBLE PRECISION & RESOLUTION

Servos are your direct connection to your aircraft, and precision & resolution are paramount to flight. Offering incredibly high levels of precision, the TORQ CL0508 Micro Servos will provide an ultra smooth, "locked in" feel to your aircraft for maximum levels of aerobatic control.

EXCELLENT THERMAL DISSIPATION

Heat is the ultimate enemy, and getting rid of it is critical for maximum levels of aircraft performance. Enclosed within a 6061 anodized aluminum case, the TORQ CL0508 servos dissipate thermal heat under high energy demands, allowing this micro servo to perform under intense stress, without fail.

HIGH VOLTAGE READY

Designed to maximize the highest ratings of torque & speed, the TORQ CL0508 is rated to handle unregulated 2S 8.4V LiPo power, taking full advantage of HV input power via receiver battery or BEC. With a wide operating voltage from 4.8V to 8.4V, the TORQ CL0508 servos will provide the power you need - when you need it the most.

STEEL REPLACEMENT GEARS

Crashes happen, and even high strength gears can take a beating. No worries, though - with the TORQ CL0508, steel replacement gears are available, making it ultra easy to replace and maintain your servos, no matter what may happen in flight or on the ground.

Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 70 reviews
96%
(67)
1%
(1)
1%
(1)
1%
(1)
0%
(0)
K
Kevin (Chattanooga, TN, US)
Torq servos

One of the best in business

T
Timothy P. (Vero Beach, FL, US)
Perfect

Fast shipping
Easy to work with
Great products

c
chris f. (Highland, NY, US)
torq servo

great little cyclic servo, great price

D
DT (West Bend, WI, US)
Great Servos

I used these to replace all the cyclic servos on my Blade Fusion 360 Smart when one literally burnt up. Everything worked out with breakaway arms and it's back up and noticeably more responsive!

D
Dan H. (Syracuse, NY, US)
Perfect price

Works well at a great price

c
craig s. (Stoke-on-Trent, ENG, GB)
torq servos

ime new to rc helies and torq servos make things so simple with the tbox they are easy to set up and use.i live in the uk and i havent seen these servos anywhere . so i was looking on youtube and heliedirect were doing a build on the raw 420 exelent video guys. thats where i first heard of these servos.and i found heliedirect these guys are exelent even in the uk your order only takes 3 days to get to you amazing service and if you need any help on any build check out these guys on youtube there videos are amazing and everything is explained to you so clear. it says something when i live in the uk and would rather buy my stuff from the usa. these servos guys are that good. check them out for your self and with help of heliedirect you will be in the air in no time

V
Vince L. (Indianapolis, IN, US)
Great little servo

At last count I own 24 of these. I use them in .40 and smaller aircraft which are mostly 3D profiles. They work extremely well, strong, fast and center well. I was likely the influence for William who also reviewed these to try them. I’ve had similar experience to his after replacing servos that didn’t center well in an airplane and having it totally transformed. My only concern with these is where the wire exits the case. It can be damaged while drilling mounting holes if one isn’t careful. Not a big deal if one is aware and careful though.

K
Kathy R. (Port Henry, NY, US)
TORQ CL0508

I put this servo in a 1/24th crawler truck.
It is so quiet and WOW fast.
And it looks great on my truck

S
Steve L. (Torrance, CA, US)
NICE ALUMINUM MICRO SERVO

These are some nicely made full aluminum cased micro servos with full metal gears. They center very well and have not had a problem with them. They are a bargain, get them before they go up in price.

J
Jared (Derby, KS, US)
Unexpectedly good

Didnt have big expectations for these, but they are working well. Great centering and no slop at all. We will see after a season of flying though. Have them in a rs4 build and running 8.2 volts. So far, they are working well.

Customer Reviews

Based on 70 reviews
96%
(67)
1%
(1)
1%
(1)
1%
(1)
0%
(0)
K
Kevin (Chattanooga, TN, US)
Torq servos

One of the best in business

T
Timothy P. (Vero Beach, FL, US)
Perfect

Fast shipping
Easy to work with
Great products

c
chris f. (Highland, NY, US)
torq servo

great little cyclic servo, great price

D
DT (West Bend, WI, US)
Great Servos

I used these to replace all the cyclic servos on my Blade Fusion 360 Smart when one literally burnt up. Everything worked out with breakaway arms and it's back up and noticeably more responsive!

D
Dan H. (Syracuse, NY, US)
Perfect price

Works well at a great price

c
craig s. (Stoke-on-Trent, ENG, GB)
torq servos

ime new to rc helies and torq servos make things so simple with the tbox they are easy to set up and use.i live in the uk and i havent seen these servos anywhere . so i was looking on youtube and heliedirect were doing a build on the raw 420 exelent video guys. thats where i first heard of these servos.and i found heliedirect these guys are exelent even in the uk your order only takes 3 days to get to you amazing service and if you need any help on any build check out these guys on youtube there videos are amazing and everything is explained to you so clear. it says something when i live in the uk and would rather buy my stuff from the usa. these servos guys are that good. check them out for your self and with help of heliedirect you will be in the air in no time

V
Vince L. (Indianapolis, IN, US)
Great little servo

At last count I own 24 of these. I use them in .40 and smaller aircraft which are mostly 3D profiles. They work extremely well, strong, fast and center well. I was likely the influence for William who also reviewed these to try them. I’ve had similar experience to his after replacing servos that didn’t center well in an airplane and having it totally transformed. My only concern with these is where the wire exits the case. It can be damaged while drilling mounting holes if one isn’t careful. Not a big deal if one is aware and careful though.

K
Kathy R. (Port Henry, NY, US)
TORQ CL0508

I put this servo in a 1/24th crawler truck.
It is so quiet and WOW fast.
And it looks great on my truck

S
Steve L. (Torrance, CA, US)
NICE ALUMINUM MICRO SERVO

These are some nicely made full aluminum cased micro servos with full metal gears. They center very well and have not had a problem with them. They are a bargain, get them before they go up in price.

J
Jared (Derby, KS, US)
Unexpectedly good

Didnt have big expectations for these, but they are working well. Great centering and no slop at all. We will see after a season of flying though. Have them in a rs4 build and running 8.2 volts. So far, they are working well.
