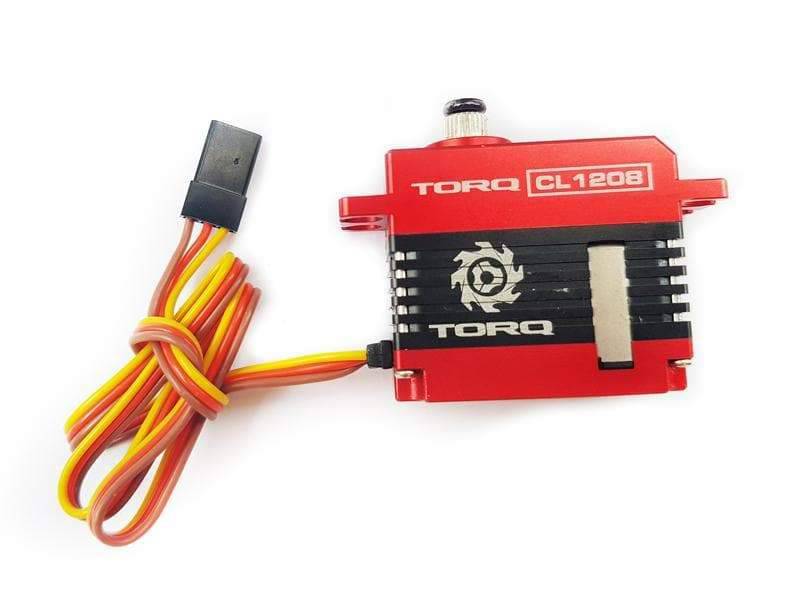

TORQ CL1208 Mini HV Coreless Servo

$85.00
You will earn 85 points for buying this product
style="display:none" ETA:

TORQ CL1208 Mini Servo - Power, Performance & Pure Domination.

Optimized for second to none power & performance, TORQ brings forth the CL1208 servo that is ready & able to push the boundaries of the mini servo world.

Designed specifically for high torque / high speed demands of helicopter, airplane & jet based aircraft, the CL1208 utilizes coreless motor technology to obtain maximum levels of high torque output, equating the TORQ CL1208 as one of the most powerful mini servos on the market today.

With a crushing torque rating of 13.5Kg.cm coalesced with a transit speed of 0.07 seconds, the TORQ CL1208 mini servo is ready to exceed the boundaries of your next flight, with next level precision and resolution that can be felt at the sticks. Ready & waiting for high voltage applications, the CL1208 operates within a wide voltage range, operating at peak torque & speed with 8.4V of power.

Constructed with fully replaceable high strength steel gears, the TORQ CL1208 utilizes a thermal dissipating 6061 finned aluminum case that is further aided in cooling via an exposed motor design. Optimized for extreme aircraft applications that demand incessant torque and power, the CL1208 provides ultra crisp control, with in flight tactile feel that can be seen and felt.

Step up to the TORQ CL0508 Mini Servo - pure performance & control for epic levels of servo domination.

Features:

- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design

Torque:

13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V

Specifications:

Motor Type: Coreless Motor
Servo Arm Type: Futaba
Weight: 40g
Operating Voltage: 6.0V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.

Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester

Customer Reviews

Based on 47 reviews
96%
(45)
4%
(2)
0%
(0)
0%
(0)
0%
(0)
j
j5dude@yahoo.com j. (Boca Raton, FL, US)
TORQ CL1208 Mini HV Coreless Servo

GREAT SERVO'S FOR MY AIRPLANE

B
Barney B.
Torq CL1208

Torq are great servos

F
Frank A. (Dimondale, MI, US)

Works as designed

E
Eddie P. (Hesperia, CA, US)
Powerful minis

Love this servos smooth and powerful servos flying this on a jet

j
j5dude@yahoo.com j. (Boca Raton, FL, US)
TORQ CL1208 Mini HV Coreless Servo

ADDED THIS ONE SERVO TO THE 3 I HAD FOR MY 60 INCH AIRPLANE

J
Joseph K.
CL1208

Very precise, fast and powerful servos. For me the only way to go!

R
RP (Portland, OR, US)
Torq servos

I would like servos better if the gear kits for them contained the .062 transfer gear pin!

M
Mark S. (Lexington, SC, US)
Torq mini servos

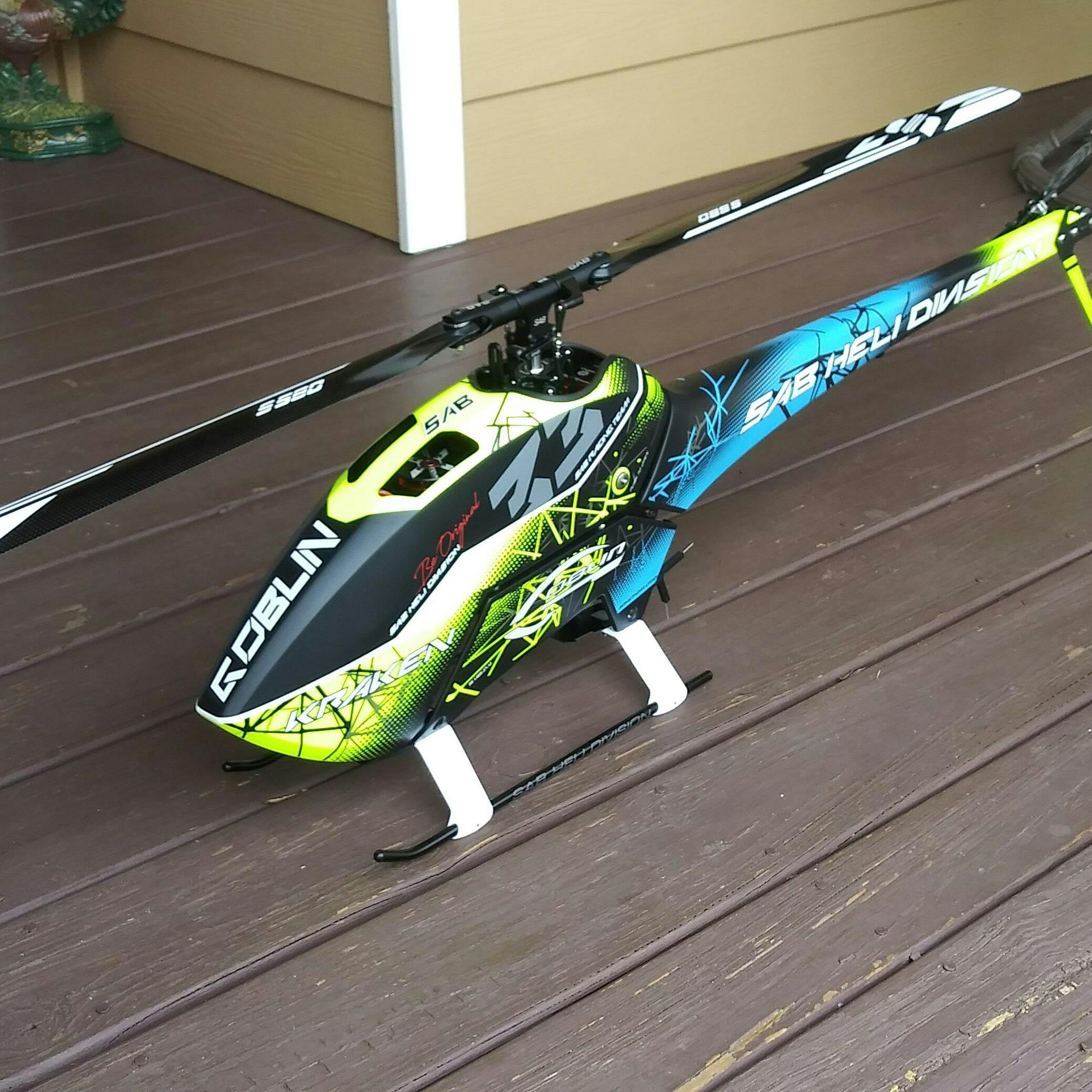

Awesome Servos....installed on my Kracken 580 nitro. Very smooth and quick response!! Thanks Heli Direct!
