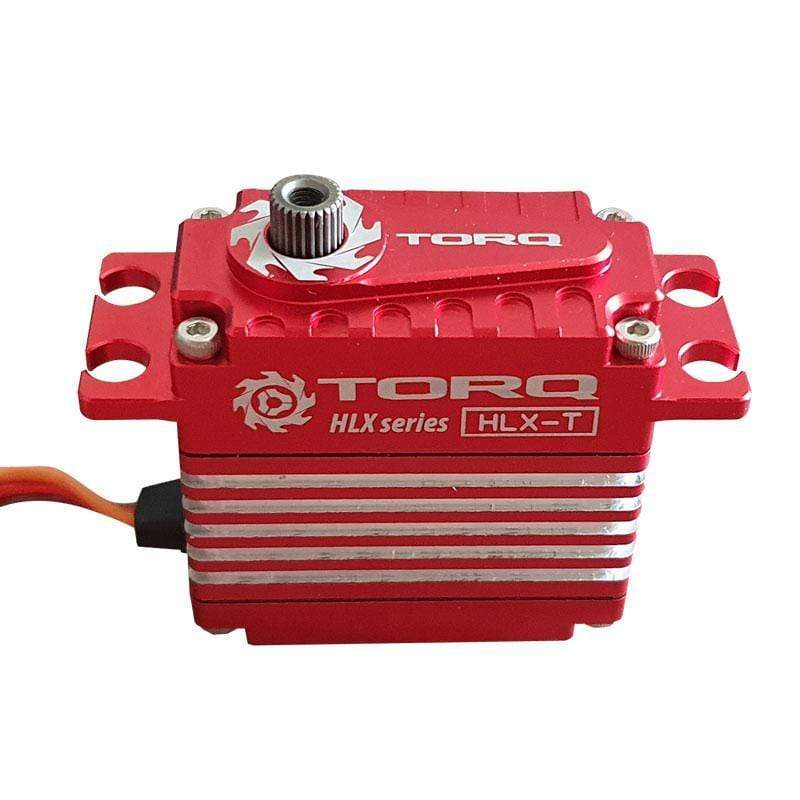

Torq HLX Full Size Tail Servo

$159.00
You will earn 159 points for buying this product
style="display:none" ETA:
  1. Features:

- Using the newest Hall Sensor Technology
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Newly Design Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- 6 Ball Bearings Construction

Speed:

0.035 sec / 60° @ 7.4V
0.04 sec / 60° @ 6.0V

Torque:

11.0Kg.cm / 97.21 oz. in. @ 7.4V
9.0Kg.cm / 83.32 oz. in. @ 6.0V

Specifications:

Motor Type: Brushless
Servo Arm Type: Futaba
Working Pulse Width / Frequency: 760us / 560Hz  450us-1050us
Weight: 80g
Dimensions: 40mm x 20mm x 40mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:
  • For helicopter rudder usage only. Please note that the TORQ HLX-T servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
  • Servo Grommet is suggested use if you use our servo on Nitro Heli.

Color: Blue, Purple, White
Size: 20, 24
Material: 100% Polyester
